Textures

Replacing Textures

For bfres

Open your file

• Go to the Textures folder
• Right Click the texture you want to replace
• Click Replace
• Select the image you want to use
• Make sure the format is set to BC1_SRGB
• Click OK
• Save

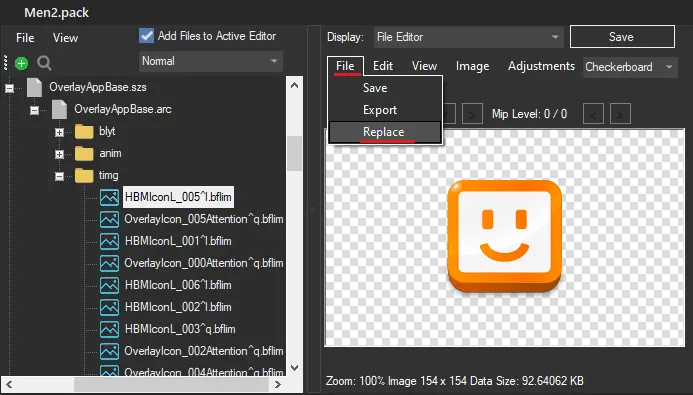

For bflyt

Open your file

• Go to the timg folder

• Click the texture you want to replace

• In Display select File Editor



• Click File then Replace



• Select the image you want to use

• Import it
• Save

Adding a new texture

If you are going to replace textures, please follow Replacing Textures instead

For bfres

Open your file

• Right Click the Textures folder
• Select the image or images you want to use
• Select all textures (with the first frame selected, shift+click the last frame)
• Change the mip count to 1
• Make sure the format is set to BC1_SRGB
• Click OK
• Save

For bflyt

Open your bflyt file

• Click the green "+" button



• Select your image

• Change the format
• Click OK

Don't delete default textures

This will cause issues, and will probably corrupt your theme, If you are going to replace textures, please follow Replacing Textures instead

Change a Material's texture

• Open the Materials folder
• Select the Material you want to change the texture of
• Click on the Texture Maps tab
• Click Edit
• Choose the texture you want to use
• Click OK
• Save
