SRT Animations

What you need

• Switch Toolbox.
• Template.

Important info

For better results please use a seamless texture and do the following.

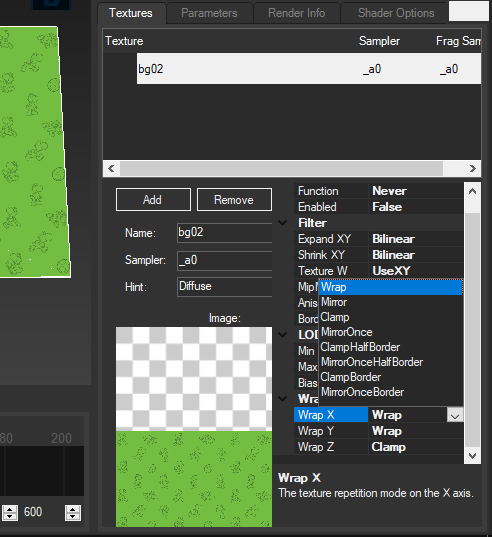

• Go to your model > Materials and select your material.
• Select the texture.

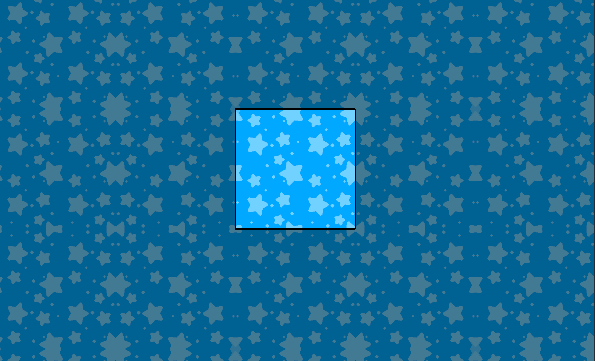

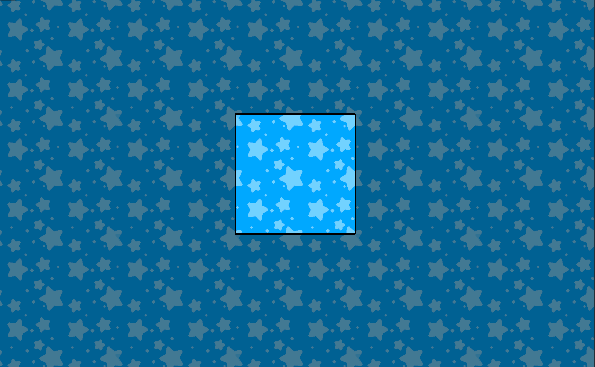

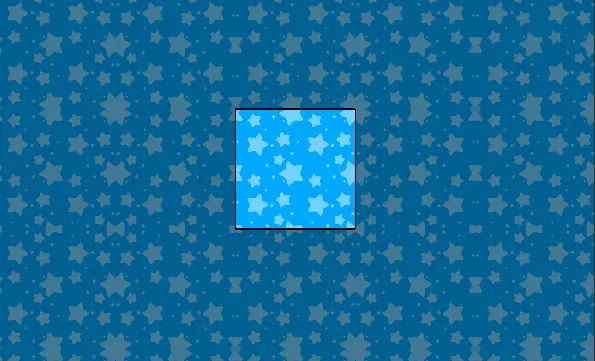

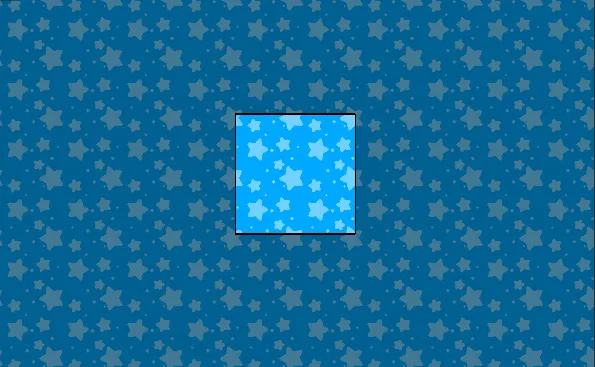

• Change Wrap X and Wrap Y from Mirror to Wrap.

Translate Texture Animations

• Scrolls horizontally from left to right (Right to left if it's reversed).
• Scrolls vertically Up (Down if it's reversed).

Scale Texture Animations

• A higher value means the texture will get smaller.
• A smaller value means the texture will get bigger.
• A negative value will flip the texture.
• Scale X affects the texture horizontally.
• Scale Y affects the texture vertically.

The following animation file will shrink the texure 1/4 of it's original size after 5 seconds, then it will grow back to normal.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

Name: LoungeVR
Path: null
Loop: true
FrameCount: 600
MaterialAnimConfigs:
  - Name: m_00
    TexturePatternInfos: []
    ParamInfos:
    - Name: tex_mtx0
      IsConstant: true
      Constants:
      - Offset: Mode
        Value: 0
        CurveData:
        - KeyFrames:
            0: 1
            300: 2
            600: 1
            Offset: Scale Y
        - KeyFrames:
            0: 1
            300: 2
            600: 1
            Offset: Scale X

Rotate Texture Animations

This animation will rotate the texture around the center of the UV Mapping.

Importing Animations

After generating your animation file(s).

• Open your model file (LoungeVR.szs, LoungeFloor.szs) with Switch Toolbox.
• Right click the Animations folder.
• Select Import -> Texture SRT Animation.
• Open the animation file(s) you previously generated.
